Cost-Effective CAD Plotters for Small Engineering Firms in Jeddah

Most small engineering firms in Jeddah make one of two mistakes when buying a plotter: they overspend on an enterprise-grade machine they’ll use at 20% capacity, or they cut corners with a consumer inkjet and spend months fighting print quality issues on client-ready A0 drawings. Neither outcome is acceptable when you’re running a tight team on civil, MEP, or architectural projects. The good news is that the CAD printers Jeddah firms actually need are reliable, large-format, budget-conscious and are more accessible than ever through local B2B suppliers. This guide gives you the information to choose correctly the first time.

Why the Right CAD Printer Matters for Small Engineering Firms

A technical drawing is not a photograph. When you export a DWG or DXF file from AutoCAD, Revit, or MicroStation and send it to a plotter, the machine must reproduce precise line weights at exact scale on A0 or A1 paper. A consumer-grade inkjet processes raster images and isn’t built to handle the vector rendering or roll media formats that engineering output demands. The result is jagged lines, inconsistent line weights, and drawings that won’t pass a municipality review or a client handover check.

For small firms in Jeddah working on Vision 2030 infrastructure projects, NEOM sub-contracts, or private-sector commercial builds, the stakes are higher than they look. Stamped, large-format drawings are a submission requirement not optional. A permit authority in the Western Region will reject a drawing set that doesn’t meet resolution and scale standards, and re-submission costs time your project schedule doesn’t have.

Plotter downtime carries a real price tag. If your machine fails during a drawing submission window, you lose not just print time but potentially the entire submission cycle. And if you’ve chosen a model with poor local support, parts and technician availability in Jeddah become a serious constraint. Beyond downtime, consider the cost-per-page gap: a poorly chosen plotter can cost SAR 0.80 more per A1 sheet in ink alone. At 300 sheets a month, that’s SAR 240 in avoidable monthly waste. Choosing Epson SureColor wide-format plotters or the right HP DesignJet model from the start eliminates that gap entirely.

Key Specs to Evaluate Before Buying a CAD Plotter in Jeddah

Print resolution is the first number to check. For CAD line work fine construction details, dimension text, hatching 1200 dpi is the working standard. Anything below 600 dpi will produce visibly jagged lines when printed at A1 scale, which is unacceptable for client-facing or permit-bound drawings. Both HP DesignJet and Epson SureColor models in the mid-range hit 2400 x 1200 dpi, which is more than sufficient for standard engineering output.

Print speed determines how practical the machine is for your daily workflow. Entry-level wide-format printers produce roughly one A1 sheet per minute in normal mode. Mid-range plotters push two to three A1 sheets per minute which sounds marginal until you’re printing a 60-sheet drawing set before an 8 AM site meeting. For firms printing more than 100 sheets a day, speed is not a secondary consideration.

Roll media width defines what you can actually print. A 24-inch plotter covers A1 and smaller, suitable for most MEP and detail drawings. A 36-inch plotter handles full A0 sheets, which you’ll need for site plans, structural layouts, and master drawings. Confirm the roll width before purchasing; buying a 24-inch machine and then discovering your site plan submissions require A0 is a costly mistake.

Ink type affects both running cost and document longevity. Pigment-based inks resist fading and perform better on coated paper important for drawings that go into project archives or get submitted to government authorities under KSA document retention requirements. Dye-based inks cost less per cartridge but degrade faster under light and humidity, which matters in Jeddah’s climate. Stick with pigment ink for anything that needs to last.

Connectivity should be straightforward: Wi-Fi, Ethernet, and USB are standard on any plotter worth buying. The feature that actually saves time in a small office is direct PDF printing, the ability to send a PDF from your laptop or mobile device without involving a RIP (raster image processor) workstation or a print driver queue. Look for it as a built-in function, not a third-party add-on.

Dual roll media support is worth paying for if your office switches regularly between plain bond paper (for internal review copies) and coated paper (for client-ready output). Without it, every media change is a manual process that interrupts workflow. Finally, total cost of ownership (TCO) not sticker price should drive your decision. Factor in ink cartridge yield in ml, printhead replacement frequency, bond and coated roll pricing in KSA, and whether the supplier offers an AMC (Annual Maintenance Contract) covering Jeddah.

Top CAD Printers Available in Jeddah for Small Engineering Firms

Three models cover the needs of most small engineering firms operating in Jeddah right now. They come from two product families HP DesignJet and Epson SureColor both of which are stocked and supported locally through Supplies Hub.

The HP DesignJet T230 24-inch is the entry point for firms whose drawing output stays at A1 or smaller. It handles plain bond, coated paper, and photographic media on a single roll. Its footprint is compact enough for a small drafting room or even a shared office space no stand required. Direct PDF printing and wireless connectivity work without needing a dedicated print server, which suits small teams where one person manages both design and output. It’s not built for volume, but for a firm printing 50–150 A1 sheets a month, it’s a practical and cost-controlled choice.

The HP DesignJet T630 36-inch plotter is where most growing firms in Jeddah land. It prints full A0 sheets, supports dual roll media (so you can keep bond and coated loaded simultaneously), and outputs an A1 drawing in approximately 25 seconds in fast mode. The embedded print server handles multi-user print queues, which becomes relevant when two or three engineers share one machine. The pigment ink system ensures archive-quality output on coated paper, and the overall build is reliable enough for daily production use on infrastructure and commercial projects.

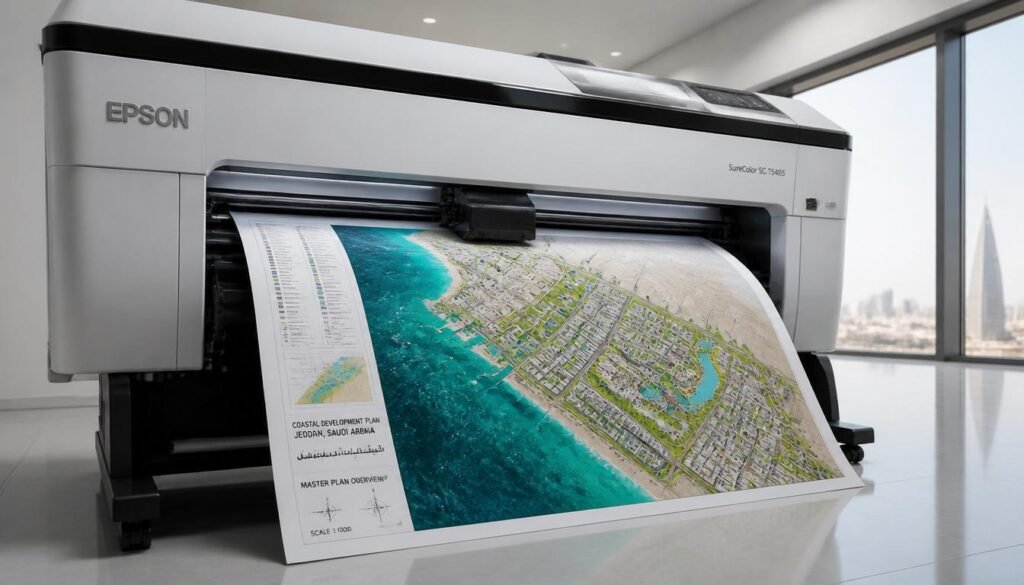

The Epson SureColor SC-T5405 matches the T630 in width and dual roll capability but pulls ahead on color output. Its five-color PrecisionCore pigment ink system renders GIS overlay maps, architectural color presentations, and rendered site plans with noticeably sharper color accuracy than a four-color system. If your firm produces colored floor plans, landscape drawings, or presentation-grade output alongside standard CAD line work, the SC-T5405 justifies its price point. Ink economy per A1 sheet is competitive, and the unit ships with a stand included.

CAD Plotter Comparison: HP DesignJet T230 vs T630 vs Epson SC-T5405

Ink Cost and Consumables — What Jeddah Engineers Often Miss

Most purchasing decisions focus on hardware price and ignore what the machine costs to run. For CAD plotters, ink is the biggest ongoing expense, and cartridge sizing matters more than most buyers realize.

HP DesignJet T230 and T630 models use HP 712 ink cartridges, available in 29 ml, 69 ml, and 300 ml sizes. The cost-per-ml difference between the 29 ml and 300 ml cartridges is significant always buy the highest-yield option your budget allows. The same logic applies to Epson SC-T5405 T-series cartridges, which come in standard and high-capacity configurations. Buying small cartridges repeatedly is one of the most common ways small firms accidentally inflate their monthly print costs.

Print mode selection also affects ink consumption more than most engineers expect. Draft mode reduces ink use by 30–50% and is entirely sufficient for internal markup copies, RFI attachments, and team review sets. Reserve normal or best-quality mode for client submissions and permit drawings. Training your team to make this distinction consistently can reduce monthly ink spend by a meaningful margin.

Paper type affects output quality and ink consumption simultaneously. Coated paper absorbs pigment ink more precisely, producing sharper line work with less ink bleed which means you actually use less ink per sheet compared to printing the same drawing on uncoated bond. For client-ready A0 drawings, coated roll paper is worth the extra cost per meter. For internal prints, standard bond works fine.

Finally, budget for consumables beyond ink: maintenance tanks, printhead cleaning cycles, and eventually printhead replacement. When selecting a supplier, confirm they carry replacement consumables locally in Jeddah and can provide an AMC contract for your plotter that covers on-site servicing.

Buying vs. Leasing a CAD Plotter in Jeddah

The right answer depends on your monthly print volume and how predictable your project pipeline is. For firms printing fewer than 200 A1 sheets per month, outright purchase almost always wins payback against a rental fee typically lands within 12 to 18 months, and you own the machine with no recurring obligation.

For firms printing 500 or more sheets per month, or teams running three or more concurrent projects with parallel drawing output, a lease or rental arrangement starts to make sense. It spreads capital cost, often bundles in maintenance, and gives you the flexibility to scale up or swap models as your workload changes. This is particularly relevant in Jeddah right now, where Vision 2030-linked project activity is creating volume spikes that smaller firms weren’t sized to handle. A rental fallback option lets you meet that surge without a capital commitment.

You can read more about your options in the printer leasing guide for Saudi Arabia or compare the economics in detail through this breakdown on renting vs buying a plotter both are relevant to the Jeddah engineering market specifically.

What to Look for in a Plotter Supplier in Jeddah

The machine is only part of the equation. A plotter that comes with no local support infrastructure is a liability, not an asset.

Local stock availability is the first filter. If your ink cartridges or paper rolls need to come from Riyadh or be imported, you’re building unnecessary lead time into every project. Your supplier should carry consumables in Jeddah and be able to deliver within 24 to 48 hours. After-sales support matters just as much: find out whether the supplier provides on-site repair, a loan unit while yours is being serviced, or at minimum a next-business-day response time for technical issues.

B2B purchasing requirements are non-negotiable for most engineering firms. You need VAT-compliant invoices, PO-based procurement, and the ability to manage multi-unit orders or firm-wide purchasing accounts. A supplier set up for retail walk-in sales is a poor fit for a professional engineering operation.

Warranty terms in KSA vary. Look for at least a one-year carry-in or on-site warranty, and confirm that the warranty is serviced locally not routed through a regional center that adds weeks of turnaround. Good plotter maintenance tips for KSA businesses and access to experienced support are often what separates a reliable supplier from one who disappears after the sale. If your firm also handles architectural output, check whether your supplier covers the best architectural plotters in Jeddah category; it signals genuine vertical expertise.

Supplies Hub is a B2B office supplies provider serving Jeddah and wider KSA, stocking HP DesignJet and Epson SureColor plotters with local delivery, VAT invoicing, and dedicated account support.

Final Recommendation — Which CAD Printer Should You Buy?

If your firm prints A1 drawings only and produces fewer than 150 sheets per month, buy the HP DesignJet T230. It’s compact, reliable, and priced for the volume you’re actually doing. There’s no reason to pay for A0 capability or dual roll support you won’t use.

If your firm prints a mix of A0 and A1, handles more than 150 sheets per month, or runs more than one active project at a time, the HP DesignJet T630 is the right machine. The dual roll, faster output, and multi-user print server cover everything a busy small-to-mid-size engineering office in Jeddah requires.

If your output includes GIS overlays, colored architectural renders, or presentation-quality drawings alongside standard line work, the Epson SureColor SC-T5405 is worth the step up. The five-color pigment system delivers color accuracy that the four-color DesignJet lineup can’t match, and ink economy at A0 size is competitive.

All three models are available through Supplies Hub with B2B pricing, local delivery to Jeddah, and consumables support. Browse CAD plotters at Supplies Hub to check current stock and request a quote for your firm or contact the team directly for bulk order pricing and procurement account setup.
